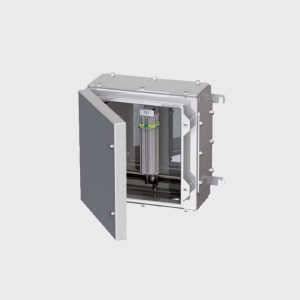

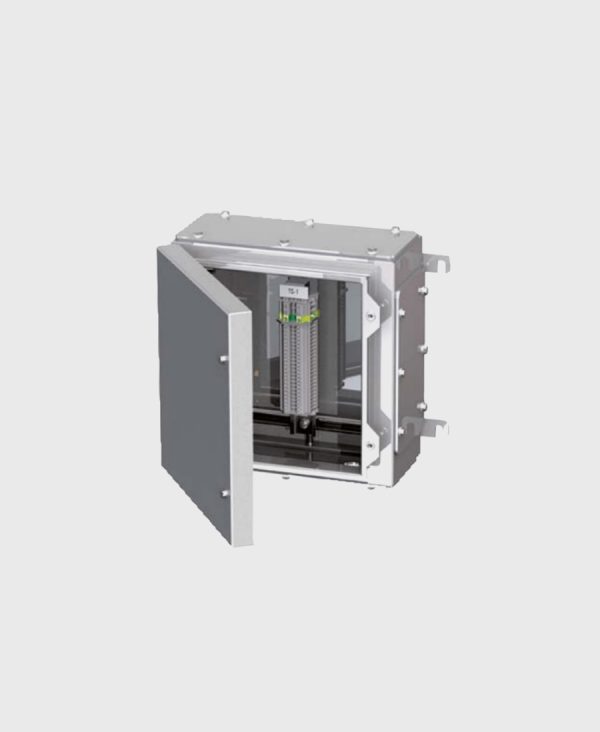

Junction Boxes
Equipment for explosive GAS and DUST atmospheres, having a “high” level of protection, which is not a source of ignition in normal operation or during expected malfunctions.
Ideal solutions for efficient operation and monitoring of multiple electrical circuits and machinery in explosion hazardous areas
Specifications
Designed to meet the requirements for ON and OFF-SHORE use, in petrochemical and marine applications and for any other industry where an explosive atmosphere may be present.
- Fully customizable for enclosure size and material, number of holes and mechanical machining.
- Suitable for the housing Ex e/eb and Ex i terminals and can be supplied with internal mounting plate to facilitate terminal board mounting.
- Maximum numbers of terminals varies according to terminals section and current, enclosure size, operating temperature and required temperature class.
- Description
Description
- Materials: Stainless steel 316L,
- Degree of protection: IP66 / IP67
- Ambient temperature range: -50°C to 95°C (depending on the component used). Other possible ranges are with:
- min temperature: -50°C to -20°C;
- max temperature: 40°C to 95°C.
- Body: 316L stainless steel
- Hardware, screws and locking devices: 316L stainless steel
- Electrical data: Depending on mounted components.
- Temperature Class: T6 (T85°C), T5 (T100°C), T4 (135°C) (depending on the component used).
